FX-10 SERVO ROTARY WIRE

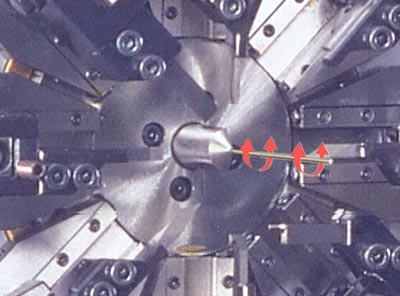

Servo rotary wire allows the wire to rotate to any angle or orientation for coiling, bending or forming. By turning the wire, tools on each slide may be used repeatedly to form different parts of the spring. Difficult or previously impossible springs are made easily.

For high turning accuracy, the FX-series turns wire without lifting feed rolls. This is done by turning the entire feed mechanism, including feed box, wire straighteners and cast wheel. Older designs, where feed rolls lift up then wire straighteners turn, can not compare to this machine, since wire will twist and turn randomly when feed roll pressure is released or applied.
